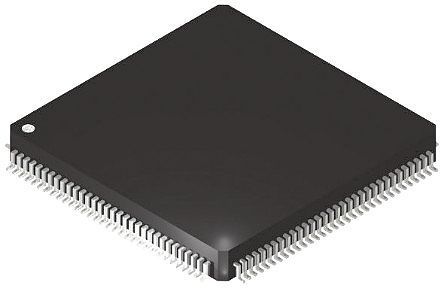

Image is for your reference only,please check specifications for details

STR912FAW46X6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC55333200
Category:
Microcontroller, MCU IC
Package:
LQFP-128
Datasheet:
Datasheet 3D Model
Description:
MCU 16Bit/32Bit ARM966E-S RISC 1Mb Flash 1.8V/3.3V 128Pin LQFP Tray
Stock Locations:
Availability:
124 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

STR91xFA is a series of ARM®-powered microcontrollers which combines a 16/32-bit ARM966E-S RISC processor core, dual-bank Flash memory, large SRAM for data or code, and a rich peripheral set to form an ideal embedded controller for a wide variety of applications such as point-of-sale terminals, industrial automation, security and surveillance, vending machines, communication gateways, serial protocol conversion, and medical equipment. The ARM966E-S core can perform single-cycle DSP instructions, good for speech processing, audio algorithms, and low-end imaging.
**Key Features**
16/32-bit 96 MHz ARM9E based MCU
ARM966E-S™ RISC core: Harvard archi-tecture, 5-stage pipeline, Tightly-Coupled Memories (SRAM and Flash)
STR91xFA implementation of core adds high-speed burst Flash memory interface, instruction prefetch queue, branch cache
Up to 96 MIPS directly from Flash memory
Single-cycle DSP instructions supported
Binary compatible with ARM7 code
Dual burst Flash memories, 32-bits wide
256 KB/512 KB/1 MB/2 MB main Flash
32 KB/128 KB secondary Flash
Sequential Burst operation up to 96 MHz
100 K min erase cycles, 20 yr min retention
SRAM, 32-bits wide
64K or 96K bytes, optional battery backup
9 programmable DMA channels
Clock, reset, and supply management
Internal oscillator operating with external 4-25 MHz crystal
Internal PLL up to 96 MHz
Real-time clock provides calendar functions, tamper, and wake-up functions
Reset Supervisor monitors supply voltage, watchdog, wake-up unit, external reset
Brown-out monitor
Run, Idle, and Sleep Mode as low as 50 uA
Vectored interrupt controller (VIC)
32 IRQ vectors, 30 interrupt pins
Branch cache minimizes interrupt latency
8-channel, 10-bit A/D converter (ADC)
0 to 3.6 V range, 0.7 usec conversion
10 Communication interfaces
10/100 Ethernet MAC with DMA and MII
USB Full-speed (12 Mbps) slave device
CAN interface (2.0B Active)
3 16550-style UARTs with IrDA protocol
2 Fast I2C, 400 kHz
2 channels for SPI, SSI™, or MICROWIRE™
External Memory Interface (EMI)
8- or 16-bit data, up to 24-bit addressing
Static Async modes for LQFP128
Additional burst synchronous modes for LFBGA144
Up to 80 I/O pins (muxed with interfaces)
16-bit standard timers (TIM)
4 timers each with 2 input capture, 2 output compare, PWM and pulse count modes
3-Phase induction motor controller (IMC)
JTAG interface with boundary scan
Embedded trace module (ARM® ETM9™)
