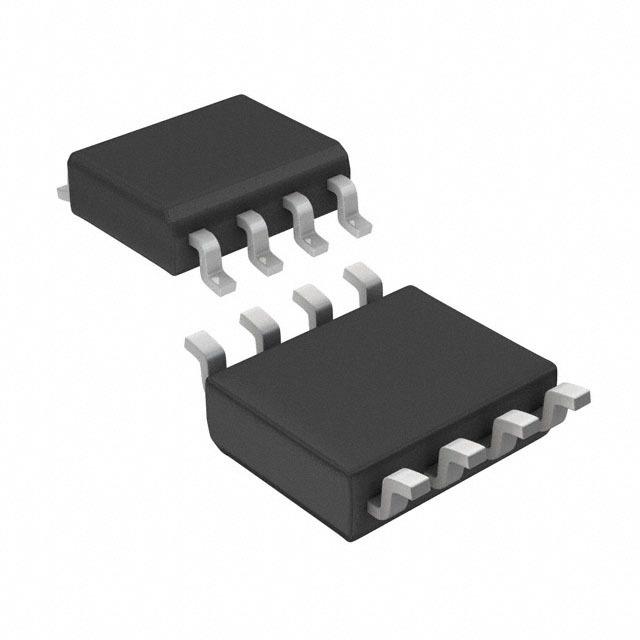

Image is for your reference only,please check specifications for details

STS9P3LLH6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC245328865
Category:
MOSFET, MOSFET Transistor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
P-channel -30V, 12mOhm typ., -9A, STripFET H6 Power MOSFET in a SO-8 package
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STS9P3LLH6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	12 mΩ
Power Dissipation	2.7 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Rise Time	93 ns
Input Capacitance (Ciss)	2615pF @25V(Vds)
Fall Time	18 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	2.7W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
