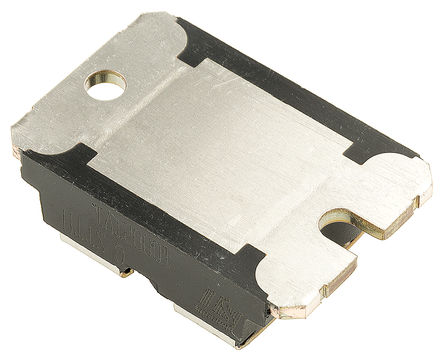

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH10002TV1 is an Ultra-fast Recovery Dual Diode suitable for welding equipment and high power industrial applications. It is intended for use in the secondary rectification of power converters.
Very low forward losses
Low recovery time
High surge current capability

Show

STTH10002TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	200 V
Current Rating	100 A
Capacitance	45.0 pF
Output Current	≤150 A
Forward Voltage	1V @50A
Polarity	Standard
Reverse recovery time	65 ns
Forward Current	50 A
Max Forward Surge Current (Ifsm)	750 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	50 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
