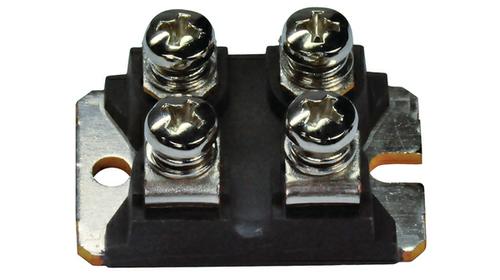

STTH200R04TV1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC51983200
Category:
TVS Diode
Package:
ISOTOP-4
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH200R04TV1 Diode Module, 400V, 100A, 1.35V, Dual Isolated, STTH2 Series
Stock Locations:
Availability:
46 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 41.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH200R04TV1 is an ultrafast Recovery Diode features very low switching losses, high frequency and high pulsed current operation. The STTH200R04TV series uses ST"s new 400V planar Pt doping technology. It is specially suited for switching mode base drive and transistor circuits, such as welding equipment.
Low leakage current
150A RMS forward current

Show

STTH200R04TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	4 Pin
Case/Package	ISOTOP-4
Forward Voltage	1.35V @100A
Reverse recovery time	100 ns
Forward Current	100 A
Maximum Forward Voltage (Max)	1.35 V
Forward Current (Max)	200000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
