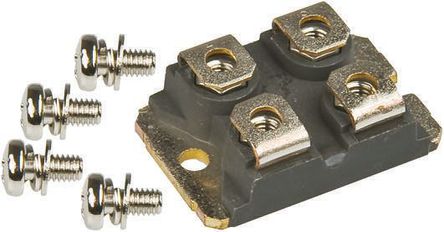

Image is for your reference only,please check specifications for details

STTH200W06TV1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC83009896
Category:
TVS Diode
Package:
SOT-227-4
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH200W06TV1 Fast / Ultrafast Diode, 600V, 200A, Dual Independent, 1.6V, 75ns, 800A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH200W06TV1 is a Turbo-2 ultra-fast High-voltage Rectifier especially suited to be used for DC/AC and DC/AC converters in primary stage of MIG/MMA/TIG welding machine. It offers high power integration for all welding machines and industrial applications.
Ultra-fast switching
Low reverse recovery current
Low thermal resistance
Reduces switching and conduction losses

Show

STTH200W06TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-227-4
Forward Voltage	1.5V @100A
Reverse recovery time	75 ns
Forward Current	200 A
Max Forward Surge Current (Ifsm)	800 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	200 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	12.2 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
