STTH20W02CW ST Microelectronics - Diode

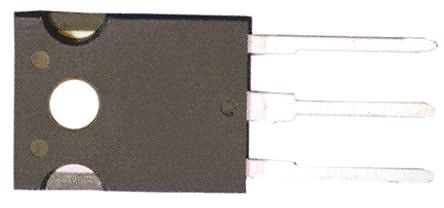

Image is for your reference only,please check specifications for details

STTH20W02CW - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC48269621
Category:
Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH20W02CW – быстрый/ультрабыстрый диод, напряжение 200 В, ток 20 А, двойный общественный катод, напряжение заряда 1,4 В, времязарения 25 нс, пропускной ток 80 А.
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.93

Updated at 12/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Серия диодов 1 пары с общественным катодом, стандартное напряжение 200 В, ток 10 А; тип корпуса TO-247-3.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.2V @10A
Reverse recovery time	25 ns
Forward Current	20 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
