STTH302 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC16945941
Category:
TVS Diode
Package:
DO-201AD
Datasheet:
Datasheet 3D Model
Description:

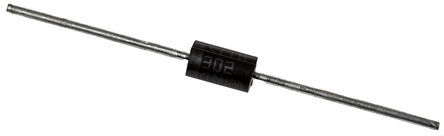

STTH302 Series 3A 0.75V 35ns Ultrafast Diode Through Hole - DO-201AD
Stock Locations:
Availability:
3,277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.68

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH302 is a high-efficiency Ultra-fast Diode especially suited for switching mode base drive and transistor circuits. It is intended for use as a free-wheeling diode in power supplies and other power switching applications.
Planar technology
Very low conduction losses
Negligible switching losses
Low forward and reverse recovery times
High junction temperature

Show

STTH302 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	200 V
Current Rating	1.00 A
Output Current	≤3.00 A
Forward Voltage	950mV @3A
Polarity	Standard
Reverse recovery time	35 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	130 A
Maximum Forward Voltage (Max)	950 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
