STTH6012W - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9793239
Category:
TVS Diode
Package:
DO-247-2
Datasheet:
Datasheet 3D Model
Description:

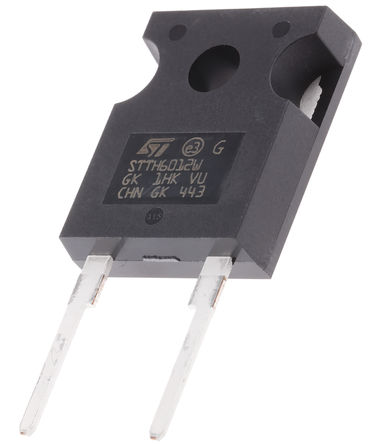

STMICROELECTRONICS STTH6012W Standard Power Diode, 1.2kV, 60A, Single, 840mV, 50ns, 400A
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.43

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH6012W is an Ultrafast Recovery Diode with high reverse voltage capability. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Very low conduction and switching losses
High frequency and high pulsed current operation
High junction temperature
80A RMS forward current
0.6°C/W Junction to case thermal resistance

Show

STTH6012W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-247-2
Voltage Rating (DC)	1.20 kV
Current Rating	60.0 A
Output Current	≤60.0 A
Number of Positions	2 Position
Forward Voltage	2.25 V
Polarity	Standard
Reverse recovery time	125 ns
Forward Current	60 A
Max Forward Surge Current (Ifsm)	400 A
Maximum Forward Voltage (Max)	840 mV
Forward Current (Max)	60 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
