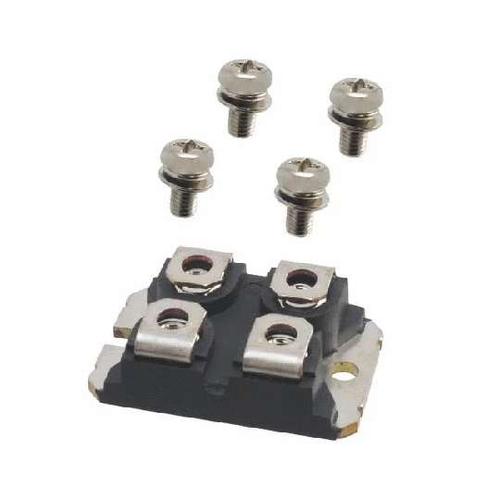

Image is for your reference only,please check specifications for details

STTH6110TV2 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC16589174
Category:
Power Diode
Package:
ISOTOP
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH6110TV2 Fast / Ultrafast Diode, 1kV, 30A, Dual Isolated, 320mV, 42ns, 240A
Stock Locations:
Availability:
75 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 30.51

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH6110TV2 is an ultrafast soft recovery High Voltage Diode with high reverse voltage capability. The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate advantage for reducing maintenance of the equipment.
Very low conduction and switching losses
High frequency and high pulsed current operation
High junction temperature
60A RMS forward current

Show

STTH6110TV2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	1.00 kV
Current Rating	60.0 A
Output Current	≤60.0 A
Forward Voltage	2V @30A
Polarity	Standard
Thermal Resistance	1.4 ℃/W
Reverse recovery time	100 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	240 A
Maximum Forward Voltage (Max)	320 mV
Forward Current (Max)	30000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Width	25.5 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
