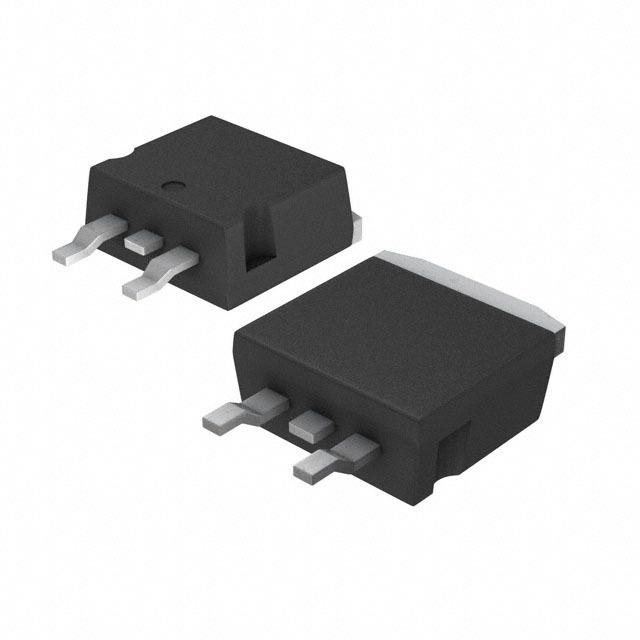

Image is for your reference only,please check specifications for details

STTH812G - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC170481178
Category:
TVS Diode
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
STTH812 Series 8A 1.25V 100ns Ultrafast Recovery Diode Surface Mount - D2PAK
Stock Locations:
Availability:
413 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.79

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability.
Such demanding applications include industrial power supplies, motor control, and similar mission-critical systems that require rectification and freewheeling. These diodes also fit into auxiliary functions such as snubber, bootstrap, and demagnetization applications.
The improved performance in low leakage current, and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Features and benefits
■ Ultrafast, soft recovery
■ Very low conduction and switching losses
■ High frequency and/or high pulsed current operation
■ High reverse voltage capability
■ High junction temperature
■ Insulated packages:
– TO-220Ins
Electrical insulation = 2500 VRMS
Capacitance = 7 pF
– TO-220FPAC
Electrical insulation = 2000 VRMS
Capacitance = 12 pF

Show
