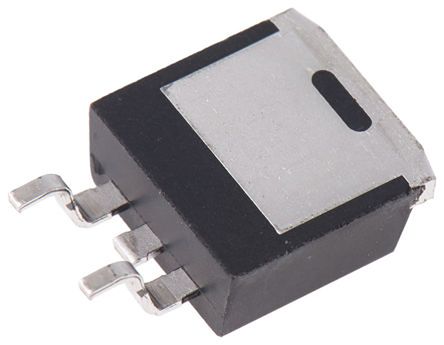

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH8L06G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	600 V
Current Rating	8.00 A
Output Current	≤8.00 A
Forward Voltage	1.3V @8A
Polarity	Standard
Thermal Resistance	2.5℃/W (RθJC)
Reverse recovery time	105 ns
Forward Current	8000 mA
Max Forward Surge Current (Ifsm)	120 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	8 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	9.35 mm
Size-Height	4.6 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
