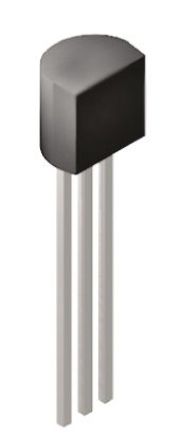

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- • Typical application (220V mains unless otherwise specified)
- • Integrated antisaturation and protection network
- • According to tube impedance
- 120V AC mains
- 277V AC mains
- 340V AC mains
- As PFC 220V AC mains
- Suffix D = Integrated free-wheeling diode
- ST preferred products in bold
- Devices in green to be used in pairs
STX83003 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-92-3 |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 1.5 W |
| Breakdown Voltage (Collector to Emitter) | 400 V |
| Continuous Collector Current | 1A |
| hFE Min | 4 |
| hFE Max | 32 |
| Input Power (Max) | 1.5 W |
| DC Current Gain (hFE) | 25 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 1500 mW |
| Show | |
| Size-Length | 4.95 mm |
| Size-Width | 3.94 mm |
| Size-Height | 4.95 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
