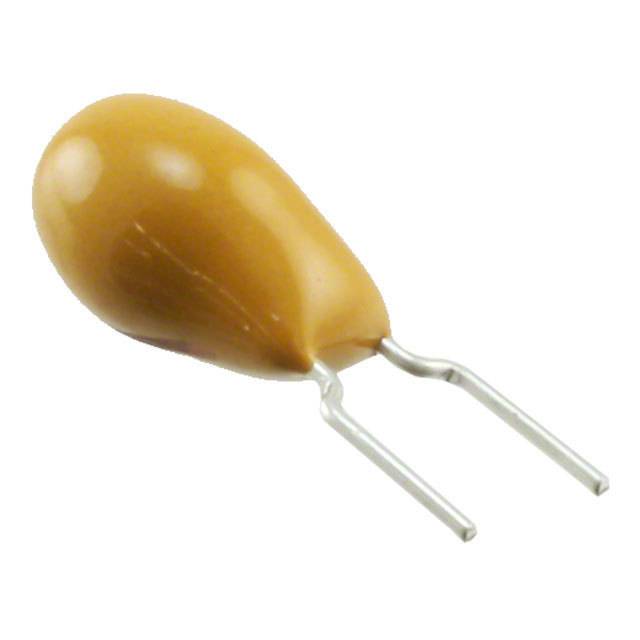

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* ** Capacitance Range:** 0.1 - 680mF
* ** Voltage Range:** 3 - 50V
* ** Tolerance:** ±20%, ±10%, ±5%
* ** Case Size:** A, B, C, D, E, F, G, H, J, K, L & M
* ** Lead Spacing: A-M Case Size - .2" Lead space / stand off
The Kemet "UltraDip II" Radial Series, miniature dipped solid tantalum capacitors, provide the designer with the advantage of compactness plus low leakage and low DF performance characteristics for filtering, bypassing, coupling, blocking and RC timing circuits. The plastic case provides a tough barrier coating and maintains precision of lead wire spacing withinj±0.015inch. This series provides self-insulating cases which are resistant to shock and vibration. These capacitors exhibit low DCL, ESR and Impedance and have excellent temperature stability. Solid tantalum devices exhibit no degradation failure mode during shelf storage and show a constantly decreasing failure rate during life test.
**

Show

T356J336K025AT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Radial
Pin Pitch	5.08 mm
Voltage Rating (DC)	25 V
Capacitance	33 µF
Equivalent Series Resistance (ESR)	1.2 Ω
Capacitance Tolerance	±10 %
Part Family	T356
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	Show
Size-Length	14 mm
Size-Height	14 mm
Size-Diameter	8.40 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532210040
ECCN Code	EAR99
