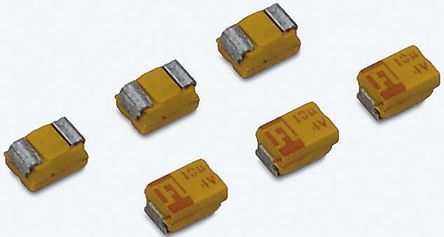

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX TAJ series capacitors are general purpose, standard polarized tantalum chip capacitors. The capacitance value ranges from 0.10µF to 2200µF.
EIA 1206, 1210, 2312, 2917, 2924 case sizes available
Meets CECC 30801-005 and EIA 535BAAC standards
Rated voltage range of 2.5VDC to 50VDC
Available in ±10% and ±20% tolerance
Operating temperature range of -55°C to 125°C

Show

TAJC686K010RNJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	6032
Case/Package	2312
Voltage Rating (DC)	10 V
Operating Voltage	10 VDC
Capacitance	68 µF
Equivalent Series Resistance (ESR)	1.3 Ω
Capacitance Tolerance	±10 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±10 %
Voltage Rating	10 V
	Show
Size-Length	6 mm
Size-Width	3.2 mm
Size-Height	2.6 mm
Dielectric Material	Tantalum
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
