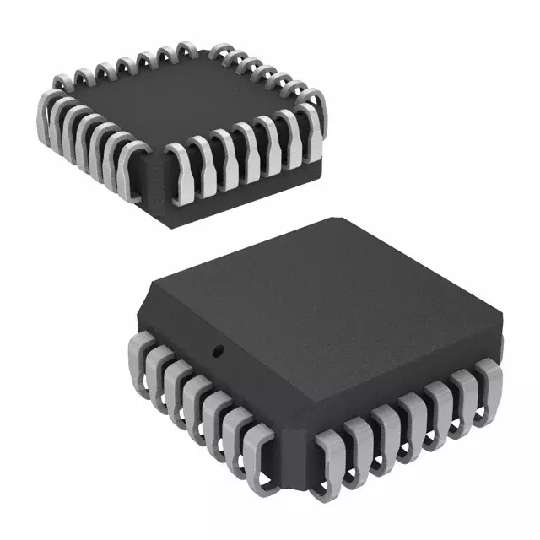

Image is for your reference only,please check specifications for details
- SL811HS - Cypress Semiconductor
-
Manufacturer:Cypress Semiconductor
-
ManyChip's Part#:MC233013707
-
Category:Microcontroller, MCU IC
-
Datasheet:Datasheet 3D Model
-
Description:The SL811HS is a single-chip, dual-speed USB Embedded Host controller that can operate as either a USB Host, or USB peripheral device. The SL811HS can interface to devices such as microprocessors, microcontrollers, DSPs or directly to a va
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
SL811HS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | LCC-28 |
| Supply Voltage (DC) | 3.30 V, 3.45 V (max) |
| Supply Current | 21 mA |
| Clock Speed | 48.0MHz (max) |
| RAM Memory Size | 256 x 8 |
| Number of I/O Pins | 8 IO |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Operating Temperature | 0℃ ~ 65℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
