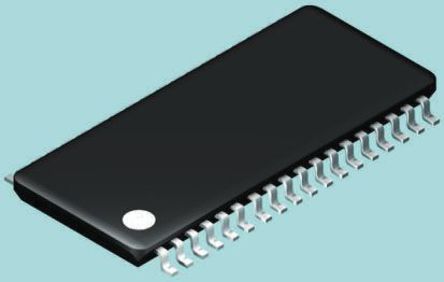

Image is for your reference only,please check specifications for details

TAS5261DKD - TI
Manufacturer:
TI
ManyChip's Part#:
MC47213763
Category:
Audio Amplifier IC
Package:
HSSOP-36
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TAS5261DKD Audio Power Amplifier, D, 2Channel, 315W, 0V to 52.5V, 10.8V to 13.2V, HSSOP, 36Pins
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TAS5261 is a high-performance, integrated mono digital amplifier power stage designed to drive 4- speakers with low harmonic distortion. This system requires only a simple, passive demodulation filter to deliver high-quality, high-efficiency audio amplification.
The TAS5261 has complete protection circuitry integrated on chip, safeguarding the device and speakers against fault conditions that could damage the system. These protection features are short-circuit protection, overcurrent protection, undervoltage protection, and a loss of pulse-width modulation (PWM) input signal (PWM Activity Detector).
A power-on reset (POR) circuit is used to eliminate power-supply sequencing that is normally required for most H-bridge designs.

Show

TAS5261DKD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	HSSOP-36
Supply Voltage (DC)	50.0 V
Number of Channels	2 Channel
Number of Positions	36 Position
Output Power	315 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10.8V ~ 13.2V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.15 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
