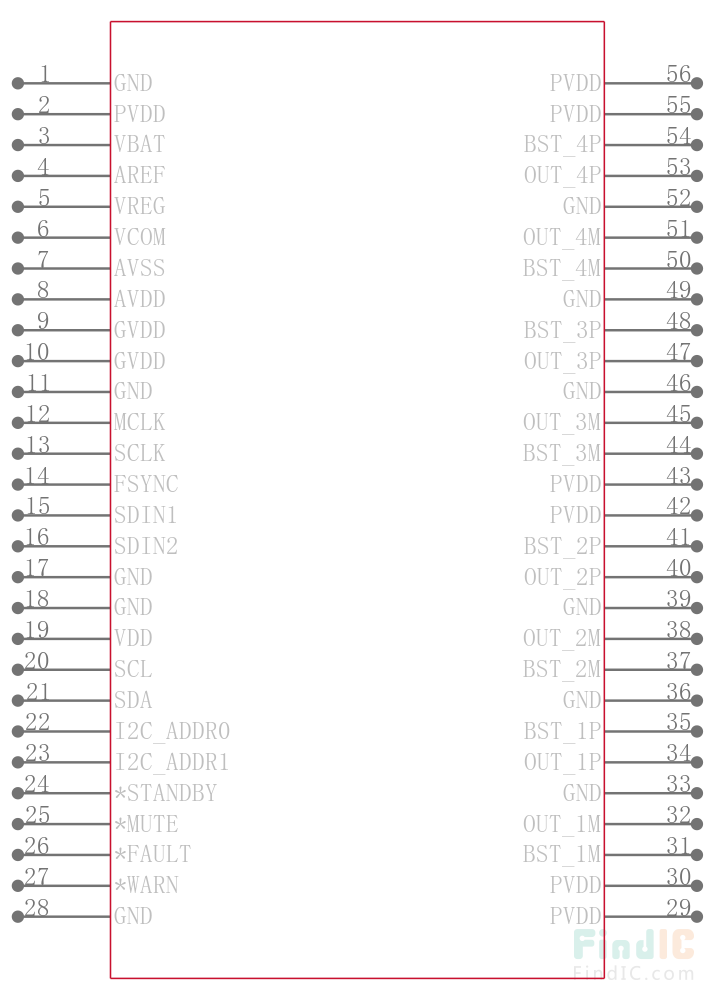

Image is for your reference only,please check specifications for details

TAS6424QDKQRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC68474920
Category:
Audio Amplifier IC
Package:
HSSOP-56
Datasheet:
Datasheet 3D Model
Description:
75W 2.1MHz Digital Input 4Channel Automotive Class-D Audio Amplifier 56-HSSOP -40℃ to 125℃
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TAS6424-Q1 device is a Four-channel digital-input Class-D audio amplifier designed for use in automotive head units and external amplifier modules. The device provides four channels at 27 W into 4 Ω at 10% THD+N and 45 W into 2 Ω at 10% THD+N from a 14.4-V supply and 75 W into 4 Ω at 10% THD+N from a 25-V supply. The Class-D topology dramatically improves efficiency over traditional linear amplifier solutions. The output switching frequency can be set either above the AM band, which eliminates the AM-band interference and reduces output filtering and cost, or below AM band to optimize efficiency.
The wide supply-voltage range from 4.5 V to 26.4 V helps minimize audio artefacts in start-stop applications
The device incorporates all the functionality required to perform in the demanding OEM applications area. The device has a built-in load diagnostic function for detecting and diagnosing misconnected outputs as well as detection AC-coupled tweeters to help to reduce test time during the manufacturing process.
The device is offered in a 56-pin HSSOP PowerPAD package with the exposed thermal pad up.

Show

TAS6424QDKQRQ1 Specifications
