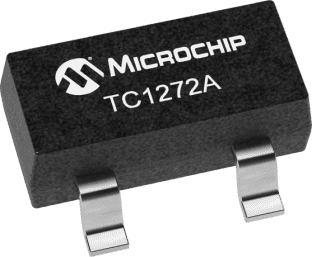

- TC1272AZVNBTR - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC158103909
-
Category:Power Monitor
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:Супервизор процессора 2,32 В, 1,2 В до 5,5 В, 3 вывода, SOT-23B, лента и катушка
-
Stock Locations:
-
Availability:232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.64
Updated at 04/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Общее описание
- TC1272A — экономичные схемы системного мониторинга, предназначенные для контроля напряжения питания VDDin в цифровых системах и подачи сигнала сброса (RESET) на основной процессор при необходимости. Не требуют внешних компонентов.
- Характеристики
- • Высокоточный монитор напряжения питания VDD
- • Минимальная длительность сигнала RESET — 140 мс
- • Время удержания выходного сигнала при VDD = 1,2 В
- • Устойчивость к переходным процессам напряжения питания VDD
- • Компактный корпус SOT-23B с тремя выводами
- • Отсутствие внешних компонентов
- Применение
- • Компьютеры
- • Встроенные системы
- • Аппаратура, питаемая от аккумуляторов
- • Критическое управление питанием микропроцессоров
TC1272AZVNBTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Supply Voltage (DC) | 1.00V (min) |
| Power Dissipation | 320 mW |
| Quiescent Current | 12.0 µA |
| Threshold Voltage | 2.32 V |
| Reset Threshold Voltage (Min) | 2.28 V |
| Reset Threshold Voltage (Max) | 2.35 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 320 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1 V |
| Show | |
| Size-Length | 3.05 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
