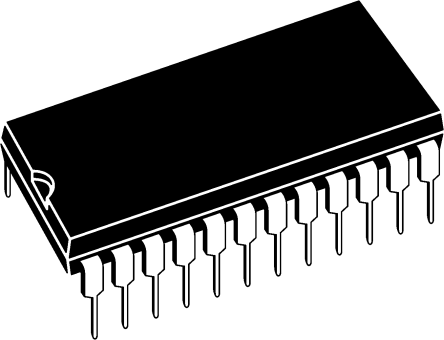

Image is for your reference only,please check specifications for details

TC14433EPG - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC21432963
Category:
Analog to Digital, ADC IC
Package:
PDIP-24
Datasheet:
Datasheet 3D Model
Description:
3-1/2 Digit Single IC Interface 4.5V A/D Converter Through Hole - PDIP-24
Stock Locations:
Availability:
52 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.08

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC14433EPG. is a 3-1/2-digit low-power high-performance monolithic CMOS Analog-to-digital Converter (ADC) combines both analog and digital circuits on a single IC, thus minimizing the number of external components. This dual slope A/D converter provides automatic polarity and zero correction with the addition of two external resistors and two capacitors. The full scale voltage range of this ratiometric IC extends from 199.9mV to 1.999V. It can operate over a wide range of power supply voltages, including batteries and standard 5V supplies.
Single positive voltage reference
Auto-polarity and auto-zero
Overrange and underrange signals
Operates in auto-ranging circuits
Uses on-chip system clock or external clock

Show

TC14433EPG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	PDIP-24
Supply Voltage (DC)	9.00V (min)
Power Rating	4.00 mW
Output Voltage	5.00 V
Supply Current	1.8 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	3 Bit
Power Dissipation	940 W
Sample Rate	25 SPS
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	940 mW
Number of Input Channels	1 Channel
Supply Voltage	4.5V ~ 8V
Supply Voltage (Max)	7.5 V
Input Voltage	1.999 V
	Show
Size-Length	31.75 mm
Size-Width	13.84 mm
Size-Height	3.81 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
