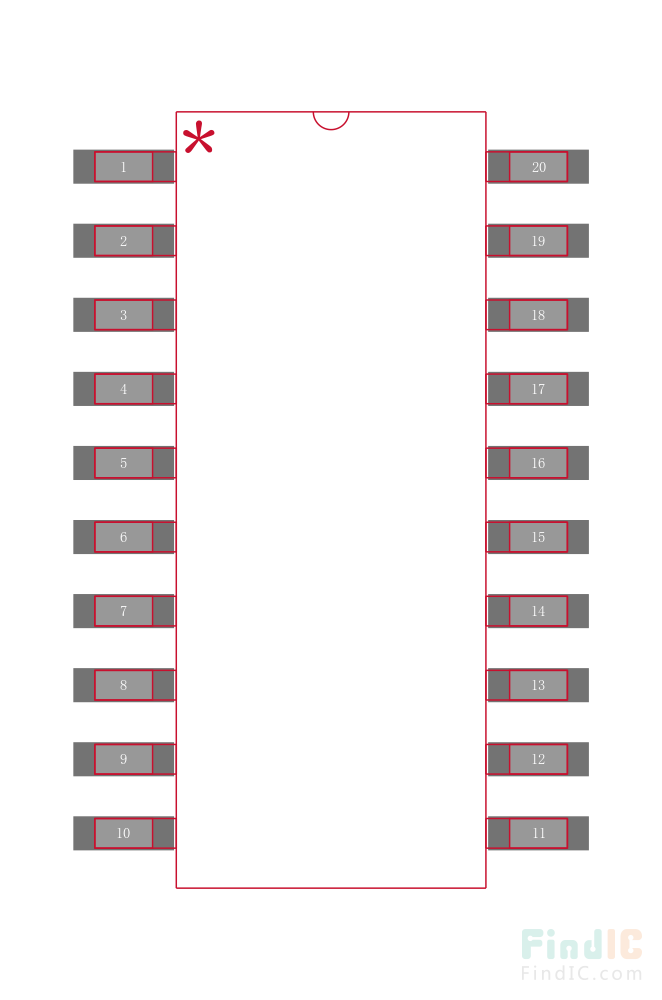

Image is for your reference only,please check specifications for details
- TC74AC541F - Toshiba Corporation
-
Manufacturer:Toshiba Corporation
-
ManyChip's Part#:MC55610707
-
Package:SOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Буфер/Линейный драйвер 8-канальный неинвертирующий, 3-сторонний CMOS, 20-контактный SOP T/R
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.61
Updated at 01/11/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TC74AC540P/F/FT — инвертирующие выходы с 3-состояниями
- TC74AC541P/F/FT — неинвертирующие выходы с 3-состояниями
- TC74AC540/TC74AC541 — это передовые высокоскоростные CMOS ОКТАЛЬНЫЕ БУФЕРЫ, изготовленные по технологии C2MOS с кремниевыми стоками и двойным металлическим проводником. Они обеспечивают высокую скорость работы, аналогичную эквивалентным биполярным Шоттки TTL, при этом сохраняя низкое энергопотребление в формате CMOS. TC74AC540 относится к инвертирующим типам, а TC74AC541 — к неинвертирующим типам.
- Особенности:
- Высокая скорость: tpd = 4,0 нс (по умолчанию) при VCC = 5 В
- Низкое энергопотребление: ICC = 8 мкА (макс.) при Ta = 25°C
- Высокая помехоустойчивость: VNIH = VNIL = 28% VCC (мин.)
- Симметричное выходное сопротивление: |IOH| = IOL = 24 мА (мин.)
- Возможность приведения в действие линий передачи с сопротивлением 50 Ω.
- Сбалансированные задержки распространения: tpLH ≈ −tpHL
- Широкий диапазон рабочих напряжений: VCC (opr) = 2–5,5 В
- Совместимость контактов и функций с 74F540/541
TC74AC541F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 20 Pin |
| Case/Package | SOP-20 |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
