TC9400CPD - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC9207350
Category:
DA Converter, AD Converter IC
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:

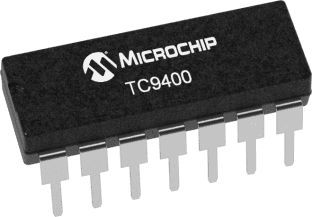

MICROCHIP TC9400CPD Voltage to Frequency Converter, 100kHz, 1Hz to 100kHz, 0.05%, ± 4V to ± 7.5V, DIP, 14Pins
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC9400CPD is a Voltage-to-frequency Converter for microprocessor data acquisition. It is utilizing low-power CMOS technology. The converter accept a variable analogue input signal and generate an output pulse train, whose frequency is linearly proportional to the input voltage. A complete Voltage-to-frequency (V/F) system only requires the addition of two capacitors, three resistors and reference voltage.
27mW Low power dissipation (typical)
±25ppm/°C (typical) Gain temperature stability
Programmable scale factor

Show

TC9400CPD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Frequency	100 kHz
Power Rating	27 mW
Output Voltage	≤18.0 V
Output Current	10 mA
Supply Current	10 mA
Number of Positions	14 Position
Power Dissipation	730 mW
Power Consumption	27 mW
Bandwidth	100 kHz
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.7.5 VDC
	Show
Size-Length	19.05 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
