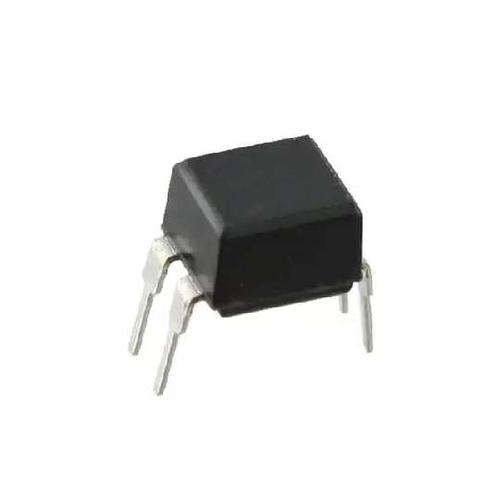

- TCET1103 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC14235383
-
Category:Optocoupler, Optoisolator
-
Package:DIP-4
-
Datasheet:Datasheet 3D Model
-
Description:TCET1103 Series 5000V 100% Through Hole Optocoupler Phototransistor
-
Stock Locations:
-
Availability:656 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.35
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TCET1103 is a 1-channel 4-pin High Temperature Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It is suitable for line receiver and microprocessor system interface.
- High common-mode rejection
- Low temperature coefficient of CTR
- Reinforced isolation provides circuit protection against electrical shock (safety class II)
- Isolation materials according to UL94V-0
- Pollution degree 2 (DIN/VDE 0110/respectively IEC 60664)
- 1.6kV Isolation test voltage (partial discharge test voltage)
- 848V Rated recurring peak voltage (repetitive)
TCET1103 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | DIP-4 |
| Supply Voltage (DC) | 5.00 V |
| Voltage Rating (DC) | 70.0 V |
| Rise/Fall Time | 3μs, 4.7μs |
| Output Voltage | 70.0 V |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Input Current | 60 mA |
| Power Dissipation | 0.265 W |
| Rise Time | 3 µs |
| Isolation Voltage | 5000 v |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 4.7 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 265 mW |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
