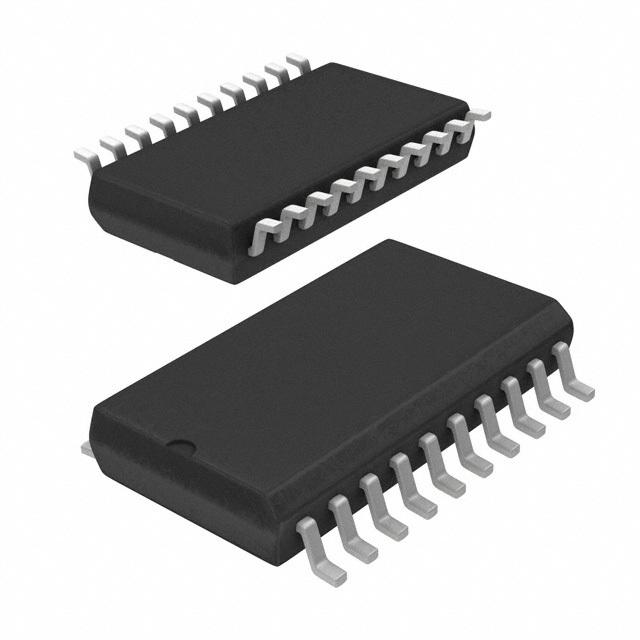

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- PFC Section
- – IEC 1000-3 compliant
- – Additional operation mode as auxiliary power supply
- – Fast, soft switching totem pole gate drive (1 A)
- – Dual loop control (average current and voltage sensing)
- – Leading edge triggered pulse width modulation
- – Peak current limitation
- – Topologies of PFC preconverter are boost or flyback
- – Continuous/discontinuous mode possible
- – 94% maximum duty cycle
- PWM Section
- – Improved current mode control
- – Fast, soft switching totem pole gate drive (1 A)
- – Soft-start management
- – Trailing edge triggered pulse width modulation
- – Topologies of PWM converter are feed forward or flyback
- – 50% maximum duty cycle to prevent transformer saturation
- – fPWM = fPFC
TDA16888G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | P-DSO-20 |
| Output Voltage | 1.5.12 V |
| Output Current | 1.5 A |
| Number of Channels | 2 Channel |
| Switching Frequency | 200 kHz |
| Maximum Duty Cycle | 98 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 0V ~ 17.5V |
| Show | |
| Size-Length | 15.9 mm |
| Size-Width | 11 mm |
| Size-Height | 3.25 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
