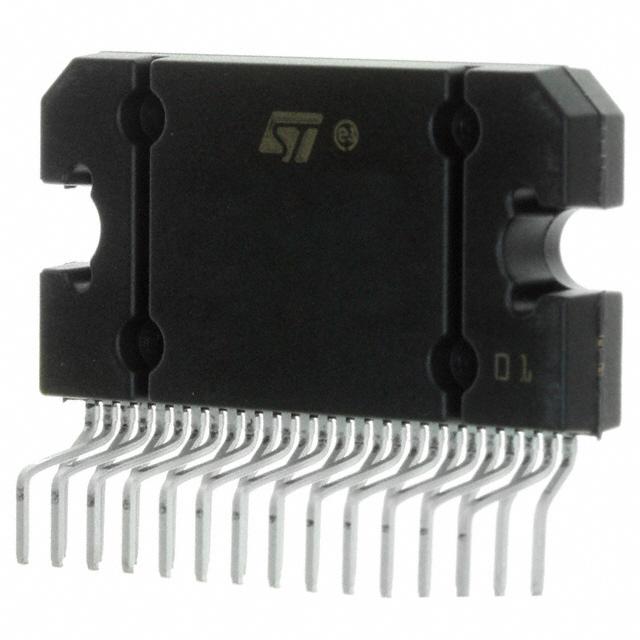

Image is for your reference only,please check specifications for details
- TDA7389A - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC120146261
-
Category:Audio Amplifier IC
-
Package:27-Flexiwatt
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 4CH Stereo 28W Class-AB 27Pin(27+Tab) FLEXIWATT(Vertical) Tube
-
Stock Locations:
-
Availability:300 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.21
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 4-Channel (Quad) Class AB 27-Flexiwatt (Vertical)
TDA7389A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 27 Pin |
| Case/Package | 27-Flexiwatt |
| Number of Circuits | 1 Circuit |
| Power Dissipation | 80000 mW |
| Output Current (Max) | 5500 mA |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 80000 mW |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
