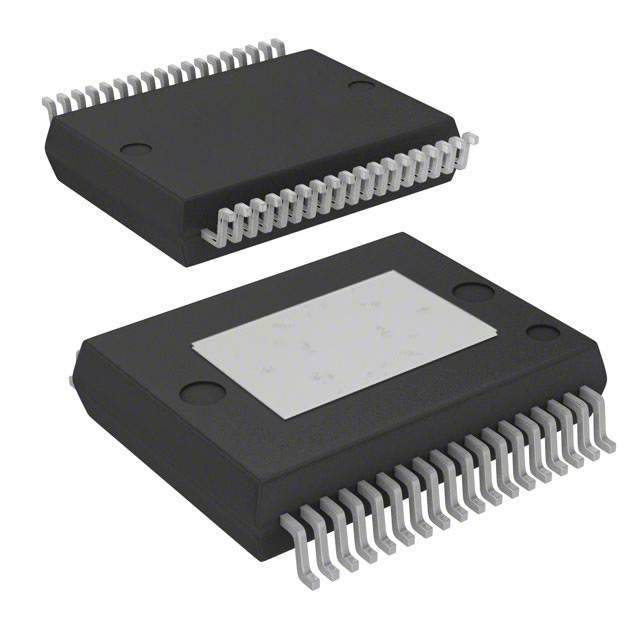

Image is for your reference only,please check specifications for details
- TDA749213TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC29393339
-
Category:Audio Amplifier IC
-
Package:PowerSSO-36
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 50W Class-D 36Pin PowerSSO EP T/R
-
Stock Locations:
-
Availability:51,838 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.64
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TDA749213TR class D amplifier from STMicroelectronics is the fastest way to boost your output volume. Its maximum power dissipation is 8000(Typ) mW. It has a maximum load resistance of 8 Ohm. It has a single input signal and a differential output signal. It has a 2-channel stereo output. This audio amplifier has a temperature range of 0 °C to 70 °C. This device uses a single power supply.
TDA749213TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | PowerSSO-36 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 36 Position |
| Power Dissipation | 8000 mW |
| Output Power | 50 W |
| Gain | 33.6 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 8000 mW |
| Supply Voltage | 8V ~ 26V |
| Show | |
| Size-Length | 10.3 mm |
| Size-Width | 7.5 mm |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
