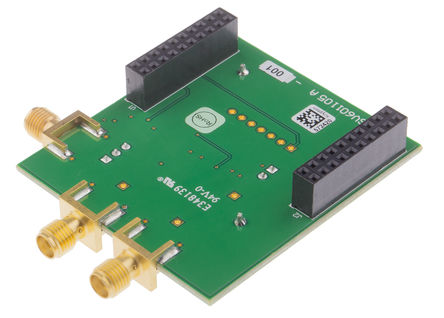

Image is for your reference only,please check specifications for details

TDC7200EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC16120850
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TDC7200EVM Evaluation Module, Sensor, Time to Digital Converter, Time Sensing for Water / Gas / Flow Meter
Stock Locations:
Availability:
234 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 403.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TDC7200EVM is an Evaluation Module for evaluate the operation and performance of the TDC7200 time-to-digital converter. One example application that requires accurate time-to-digital conversion is flow sensing. The TDC7200 can be used with an ultrasonic analogue-front-end (such as the TDC1000) to capture accurate time sensing for water/gas/heat flow meters. The board has two SMA connectors for the START and STOP pulses and it connects to the MSP430 LaunchPad evaluation kit for capturing data. The board comes with an user-friendly graphic user interface (GUI) to modify the registers and display the data.
Powered by MSP430 LaunchPad (no external power needed)

Show

TDC7200EVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
