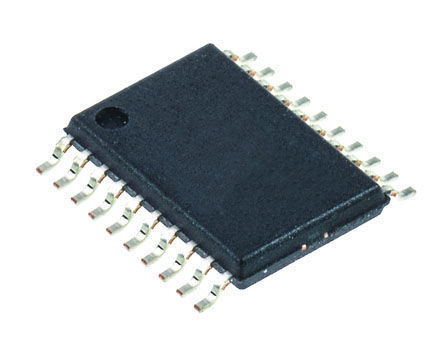

TPS76733QPWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC39736704
Category:
Voltage Regulator
Package:
HTSSOP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS76733QPWP Fixed LDO Voltage Regulator, 2.7V to 10V, 350mV Dropout, 3.3Vout, 1Aout, HTSSOP-20
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS76733QPWP is a 3.3V fixed output low-dropout (LDO) Linear Regulator designed to have a fast transient response and be stable with 10µF capacitors. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, because the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 85µA over the full range of output current, 0mA to 1A). These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a shutdown mode, applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to less than 1 µA at TJ = 25°C.
Ultra-Low 35µA typical Quiescent current
2% Tolerance over specified conditions
Open drain power-ON reset with 200ms delay
Thermal shutdown protection
Green product and no Sb/Br

Show

TPS76733QPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	HTSSOP-20
Current Rating	1.00 A
Power Rating	0.904 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	1 A
Supply Current	125 µA
Number of Positions	20 Position
Power Dissipation	7.2 W
Quiescent Current	0.085 mA
Output Capacitor Type	Ceramic
voltage rating	0.35V @1A
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	7200 mW
Accuracy	±2 %
Input Voltage	≤10 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
