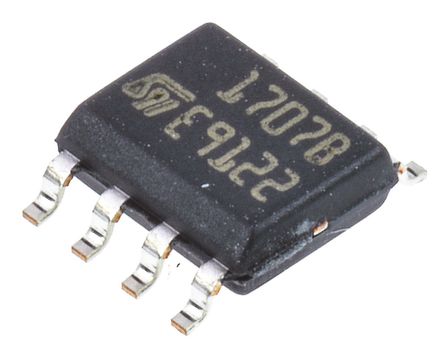

Image is for your reference only,please check specifications for details

TDE1707BFP - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9992200
Category:
Power Distribution
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMicroelectronics TDE1707BFP, Power Switch Dual 500mA 50V max. 8Pin SOIC
Stock Locations:
Availability:
230 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 221.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TDE1707BFP is an Intelligent Power Switch with low side or high side switch configuration. Especially dedicated to proximity detectors, its internal +5V supply can be used to supply external circuits. A signal is internally generated to block the in-signal and prevent activation of the output switch, as long as an abnormal condition is detected.
Overload and short-circuit protections
Internal voltage clamping
Supply and output reversal protection
Thermal shutdown
GND and VS open wire protection
Adjustable delay at switch ON
Indicator status LED driver
High burst immunity

Show

TDE1707BFP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	50.0V (max)
Number of Outputs	2 Output
Input Voltage (DC)	50.0 V
Output Voltage	55.0 V, 5.00 V (max)
Output Current	0.5 A
Number of Positions	8 Position
Input Voltage (Max)	50 V
Output Current (Max)	500 mA
Output Current (Min)	0.5 A
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	6V ~ 48V
Input Voltage	50 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
