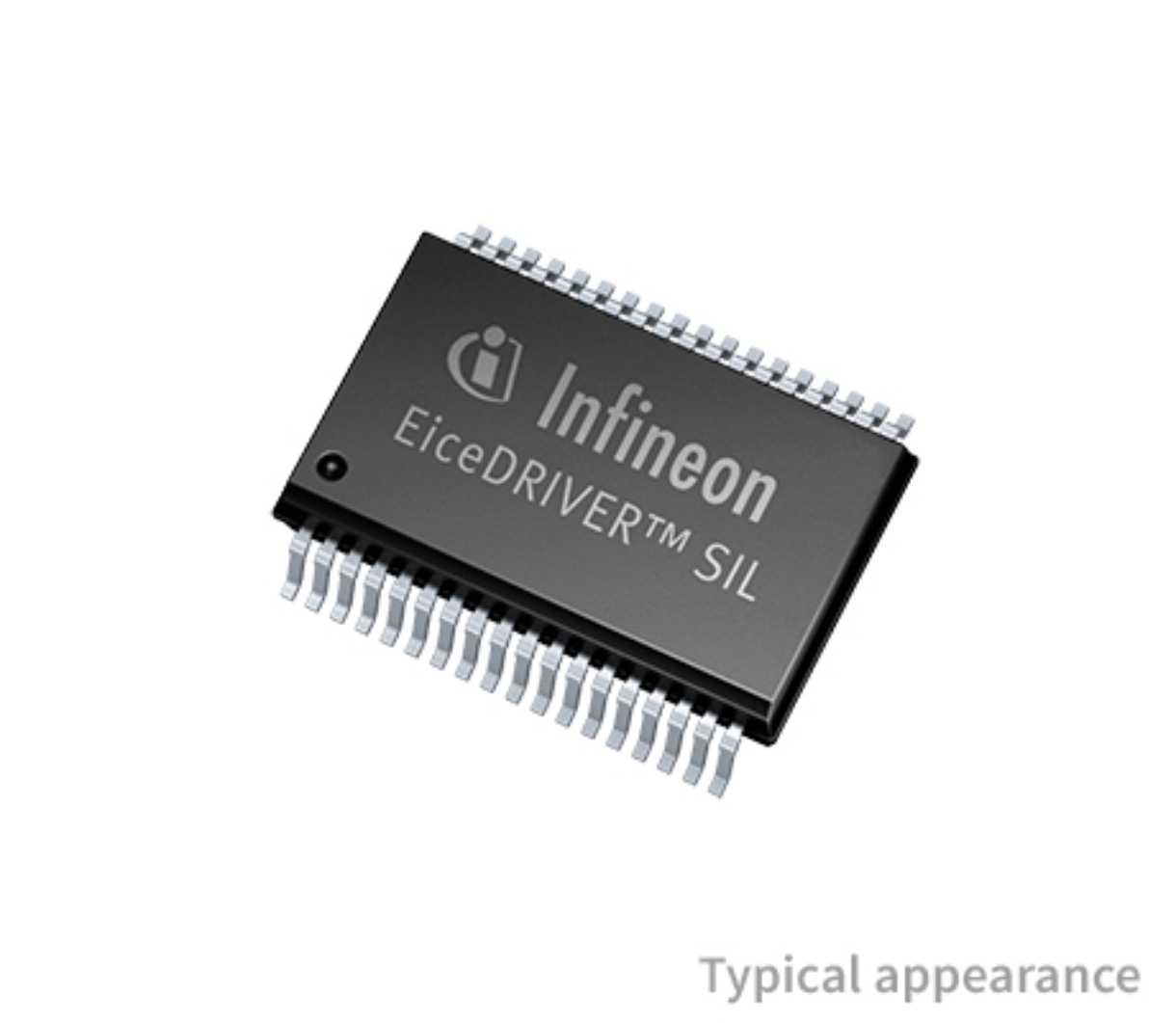

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Single Channel IGBT Driver
On-chip galvanic insulation (up to 6kV)
Support of 600 V and 1200 V IGBT technologies
Low propagation delay and minimal PWM distortion
Support of 5 V logic levels (primary side)
16-bit Standard SPI interface (up to 2 MBaud) with daisy chain support (primary side)
Optimal support of EiceBoost functions
36-pin PG-DSO-36 green package
Automotive qualified (as per AEC Q100)
Desaturation monitoring
Overcurrent protection
Fully programmable Two-Level Turn-Off
Fully programmable Two-Level Turn On (TTON)
Low latency digital channel
Automatic Emergency Turn-Off in failure case
Gate signal monitoring
Individual error and status flags readable via SPI
Support for Active Short Circuit strategies
Full diagnosticability
In-application testability of safety critical functions
Benefits:
Support for active short circuit strategies
Cost effective implementation of ASIL C/D on system level
Significant PCB area savings
