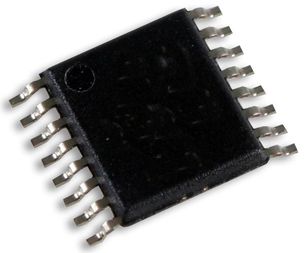

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TDK5100 is a single chip ASK/FSK Transmitter for 868 to 870MHz frequency band. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and unique power amplifier design are used to save current consumption and therefore to save battery life. Additionally features like a power down mode, a low power detect, a selectable crystal oscillator frequency and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation.
Fully integrated frequency synthesizer
VCO without external components
ASK and FSK modulation
High efficiency power amplifier (typically 5/2dBm)
Low supply current (typically 7mA)
Power down mode
Low voltage sensor
Selectable crystal oscillator 6.78/13.56MHz
Programmable divided clock output for µC
Low external component count

Show

TDK5100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.10V (min)
Number of Positions	16 Position
Output Power	3.2 dBm
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.1.3.4 VDC
Supply Voltage (Max)	4 V
Supply Voltage (Min)	2.1 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
