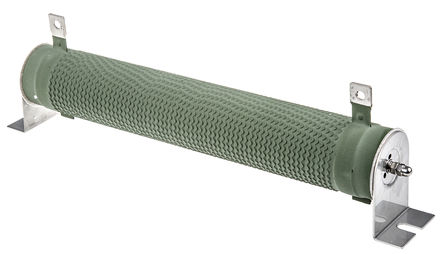

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TE series from TE Connectivity resistors are high power, panel mount wirewound resistors. The TE range of mullite coated tubular ceramic core resistors have corrugated ribbon element for rapid cooling effect to enable up to 2.5KW power handling capability. These are designed for heavy duty machinery, electrical equipment where stability and reliability is of major concern.
- Resistance value ranges from 0.1ohm to 2.7Kohm
- ±5% and ±10% tolerance
- Temperature coefficient is ±440ppm/°C
- Operating temperature range -25°C to +225°C
- 3x overload for 5 seconds
- Custom terminations /leads available
- Flameproof construction
TE500B100RJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Bracket |
| Number of Pins | 2 Pin |
| Case/Package | Radial, Tubular |
| Capacitance Tolerance | ±5 % |
| Power Rating | 500 W |
| Resistance | 100 Ω |
| Resistance Tolerance | ±5 % |
| Operating Temperature (Max) | 255 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 316 mm |
| Size-Height | 101 mm |
| Operating Temperature | -25℃ ~ 225℃ |
| Temperature Coefficient | ±440 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8533290000 |
| ECCN Code | EAR99 |
