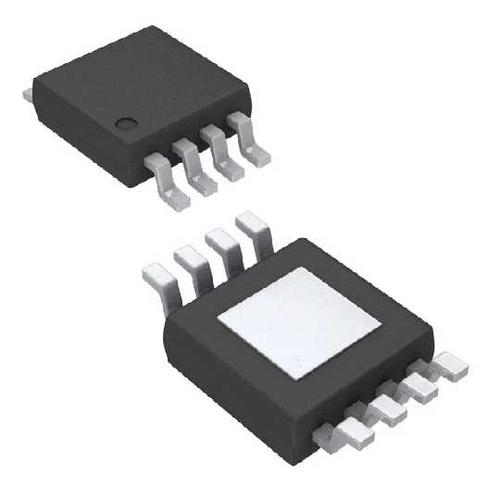

Image is for your reference only,please check specifications for details

THS4503IDGN - TI
Manufacturer:
TI
ManyChip's Part#:
MC17095903
Category:
Operational Amplifier, OP Amp IC
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4503IDGN Differential Amplifier, Wideband, 1 Amplifiers, -4mV, 1.02dB, 370MHz, -40℃, 85℃
Stock Locations:
Availability:
287 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.08

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS4503IDGN is a high-performance fully Differential Amplifier for use with wireless communication receiver chains. The THS4503 featuring without power-down capability, set new performance standards for fully differential amplifier with unsurpassed linearity, supporting 14-bit operation through 40MHz.
Fully differential architecture
Output common-mode control
Centered input common-mode range
Power-down capability
80dB CMRR
Green product and no Sb/Br

Show

THS4503IDGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Voltage (DC)	15.0 V
Output Current	100mA @5V
Supply Current	23 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.71 W
Common Mode Rejection Ratio	74 dB
Input Offset Drift	10.0 µV/K
Bandwidth	370 MHz
Slew Rate	2.80 kV/μs
Gain Bandwidth Product	300 MHz
Input Offset Voltage	1 mV
Input Bias Current	4 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	370 MHz
Gain Bandwidth	300 MHz
Power Dissipation (Max)	1710 mW
Minimum CMRR Range	74 dB
Supply Voltage (Max)	15V ~ 18V
Supply Voltage (Min)	4.5 V
	Show
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
