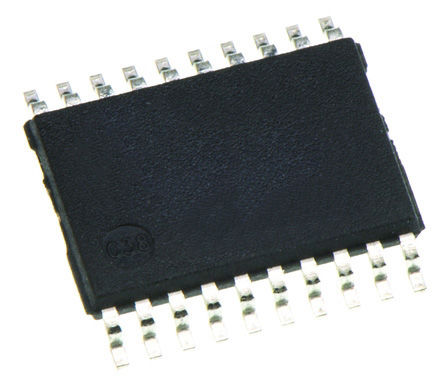

Image is for your reference only,please check specifications for details
- THS7368IPW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC25559438
-
Category:Video Amplifier, CATV Amplifier IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Video Amplifier, 6 Amplifiers, 350MHz, 125V/µs, -40℃, 85℃, 80mA
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Think of Texas Instruments" THS7368IPW video distribution amplifier the next time you are worried about reduced video signal fidelity. This video amplifier has a temperature range of -40 °C to 85 °C. This device comes in tube packaging. This device uses a single power supply.
THS7368IPW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Output Current | 80 mA |
| Supply Current | 24.5 mA |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Number of Positions | 20 Position |
| Power Dissipation | 1.2 W |
| Slew Rate | 125 V/μs |
| Gain Bandwidth Product | 375 MHz |
| Gain | 6.00 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 9.5 MHz |
| Gain Bandwidth | 350 MHz |
| Power Dissipation (Max) | 1200 mW |
| Supply Voltage | 2.6V ~ 5V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
