Description
- Even in the event of large power supply variations, this TL431CLPE3 voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 2.495 to 36 V, this is power management at its best. It has an initial accuracy of 2%. This will operate at a maximum voltage of 37 V, making it easy to control the power in your circuit. This voltage reference circuit supports shunt topology. This product comes packaged in bulk, so the parts will be stored loosely. It runs with a maximum temperature coefficient of 34ppm/°C(Typ). This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C.

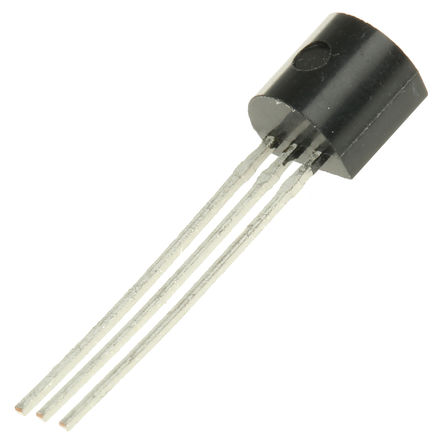

TL431CLPE3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Capacitance Tolerance | ±2.2 % |
| Output Voltage | 2.495V ~ 36V |
| Output Current | 100 mA |
| Number of Channels | 1 Channel |
| Input Voltage (Max) | 37 V |
| Output Voltage (Max) | 36 V |
| Output Voltage (Min) | 2.495 V |
| Output Current (Max) | 100 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 37 V |
| Show | |
| Size-Length | 4.83 mm |
| Size-Width | 3.43 mm |
| Size-Height | 3.68 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Temperature Coefficient | ±92 ppm/℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
