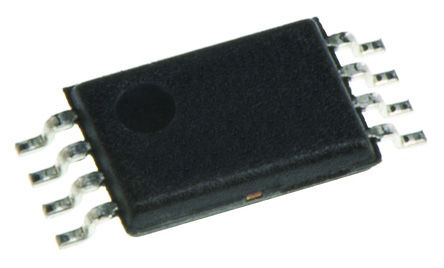

Image is for your reference only,please check specifications for details

Updated at 18/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL7700CPW is a Voltage Supervisor with active-low open-drain output. The bipolar integrated circuit designed for use as a reset controller in microcomputer and microprocessor systems. The SENSE voltage can be set to any value greater than 0.5V using two external resistors. The hysteresis value of the sense voltage also can be set by the same resistors. The device includes a precision voltage reference, fast comparator, timing generator and output driver, so it can generate a power-on reset signal in a digital system. The TL7700 has an internal 1.5V temperature-compensated voltage reference from which all function blocks are supplied. Circuit function is very stable, with supply voltage in the 1.8 to 40V range. Minimum supply current allows use with AC line operation and portable battery operation.
Adjustable sense voltage with two external resistors
Adjustable hysteresis of sense voltage
Minimum external components required
Programmable time delay
0.6mA Typical low power consumption
Green product and no Sb/Br

Show

TL7700CPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	1.80V (min)
Supply Current	600 µA
Number of Positions	8 Position
Quiescent Current	600 µA
Threshold Voltage	Adjustable
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
