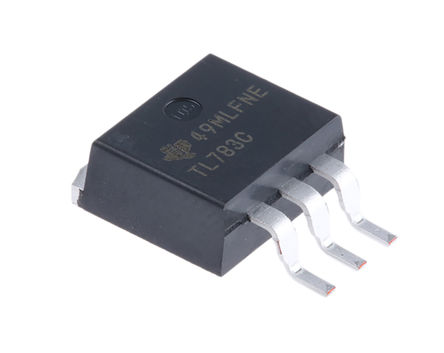

TL783CKTTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC560000
Category:
Voltage Regulator
Package:
TO-263-4
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator 3Pin 750mA Adjustable Positive Voltage Regulator with 125Vin Standard Regulator Pos 1.25V to 125V 0.7A 4Pin(3+Tab) TO-263 T/R
Stock Locations:
Availability:
315 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.45

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL783CKTTR is a 3-pin 750mA adjustable positive Voltage Regulator with 125VIN. The TL783 device is an adjustable three-terminal high-voltage regulator with an output range of 1.25 to 125V and a DMOS output transistor capable of sourcing more than 700mA. It is designed for use in high-voltage applications where standard bipolar regulators cannot be used. Excellent performance specifications, superior to those of most bipolar regulators, are achieved through circuit design and advanced layout techniques.
Full short-circuit safe operating area and thermal shutdown protection
0.001%/V Typical input voltage regulation
0.15% Typical output voltage regulation
76dB Typical ripple rejection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TL783CKTTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-4
Number of Outputs	1 Output
Input Voltage (DC)	150V (max)
Output Voltage	1.25V ~ 125V
Output Current	700 mA
Number of Positions	3 Position
Quiescent Current	15.0 mA
Output Capacitor Type	Capacitor Free
voltage rating	10.0 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	125 V
Input Voltage (Min)	20 V
Output Voltage (Max)	125 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.7 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	21.5V ~ 150V
	Show
Size-Length	10.18 mm
Size-Width	8.41 mm
Size-Height	4.44 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
