TL783CKTTRG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC5267353
Category:
Voltage Regulator
Package:
TO-263-4
Datasheet:
Datasheet 3D Model
Description:

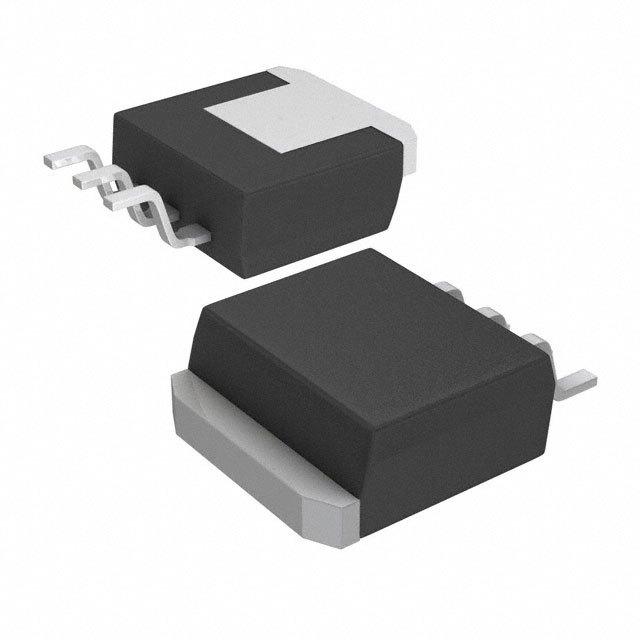

TEXAS INSTRUMENTS TL783CKTTRG3 Linear Voltage Regulator, Adjustable, 20V to 125V input, 1.25V to 125V/700mA out, TO-263-3
Stock Locations:
Availability:
4,203 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TL783 is an adjustable three-terminal high-voltage regulator with an output range of 1.25 V to 125 V and a DMOS output transistor capable of sourcing more than 700 mA. It is designed for use in high-voltage applications where standard bipolar regulators cannot be used. Excellent performance specifications, superior to those of most bipolar regulators, are achieved through circuit design and advanced layout techniques.
Output Adjustable From 1.25 V to 125 V When Used With an External Resistor Divider
700-mA Output Current
Full Short-Circuit, Safe-Operating-Area, and
Thermal-Shutdown Protection
0.001%/V Typical Input Voltage Regulation
0.15% Typical Output Voltage Regulation
76-dB Typical Ripple Rejection
Standard TO-220AB Package

Show

TL783CKTTRG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-4
Number of Outputs	1 Output
Output Voltage	1.25V ~ 125V
Output Current	700 mA
Quiescent Current	15.0 mA
Output Capacitor Type	Capacitor Free
voltage rating	10.0 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	125 V
Input Voltage (Min)	20 V
Output Voltage (Max)	125 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.7 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	21.5V ~ 150V
	Show
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
