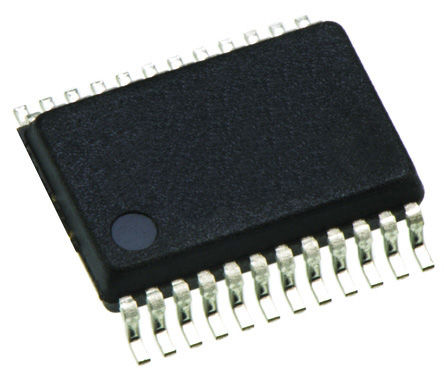

TLC5926IDBQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC28114134
Category:
LED Driver, LED Display Driver
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC5926IDBQR Led Driver, 16Outputs, Constant Current, 3V-5.5V in, 30MHz switch, 17V/120mA out, SSOP-24
Stock Locations:
Availability:
1,230 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.89

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC5926IDBQR is a 16-channel constant-current LED Sink Driver for LED displays with open-load, shorted-load, over-temperature detection and constant-current control. It contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the TLC592x output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF (forward voltage) variations. Used in systems designed for LED display applications (for example, LED panels), TLC592x provides great flexibility and device performance. Users can adjust the output current from 5 to 120mA through an external resistor, Rext, which gives flexibility in controlling the light intensity of LEDs. It is designed for up to 17V at the output port. The high clock frequency, 30MHz, also satisfies the system requirements of high-volume data transmission.
Output current adjusted by external resistor
Constant output current invariant to load voltage change
Open-load and shorted-load detection
256-Step programmable global current gain
Schmitt-trigger input
Thermal shutdown for over-temperature protection
Green product and no Sb/Br

Show

TLC5926IDBQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Frequency	30 MHz
Number of Outputs	16 Output
Input Voltage (DC)	3.00V ~ 5.50V
Output Voltage	17 V
Output Current	120 mA
Supply Current	20000 mA
Number of Positions	24 Position
Power Dissipation	1.6 W
Switching Frequency	30 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Output Voltage (Max)	20 V
Output Current (Max)	120 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 5.5V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Weight	0.0020720100832 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
