Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 5 Pin |

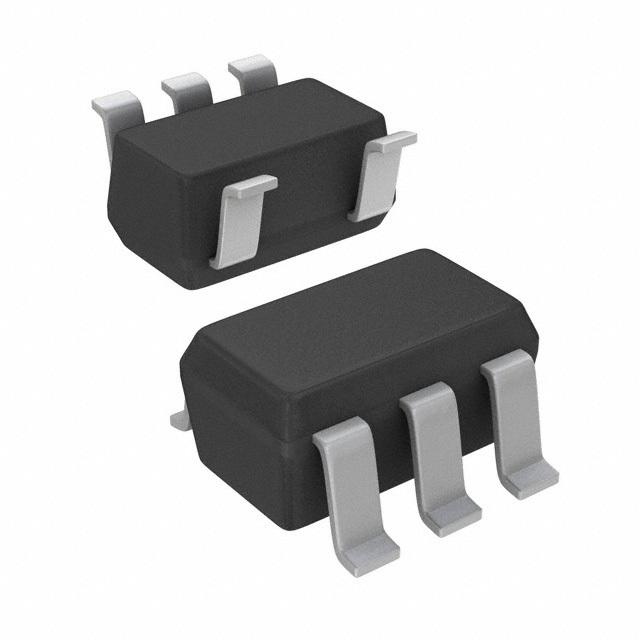

Case/Package | SOT-23-5 |
Output Current | 8mA @5V |
Supply Current | 750 µA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Number of Positions | 5 Position |
Power Dissipation | 0.201 W |
Common Mode Rejection Ratio | 58 dB |
Input Offset Drift | 2.00 µV/K |
Bandwidth | 3 MHz |
Slew Rate | 2.10 V/μs |
Gain Bandwidth Product | 3 MHz |
Input Offset Voltage | 500 µV |
Input Bias Current | 1 pA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 3 MHz |
Power Dissipation (Max) | 201 mW |
Minimum CMRR Range | 58 dB |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.6 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2015/06/15 |
