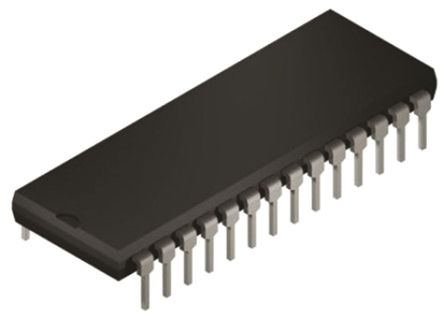

TLC5941NT - TI
Manufacturer:
TI
ManyChip's Part#:
MC104154252
Category:
LED Driver, LED Display Driver
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
16Channel LED Driver with Dot Correction and Grayscale PWM Control 28-PDIP -40℃ to 85℃
Stock Locations:
Availability:
2,426 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TLC5941NT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Frequency	30 MHz
Number of Outputs	16 Output
Output Voltage	17 V
Output Current	80 mA
Number of Positions	28 Position
Switching Frequency	30 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
