Description
- Description:
- TLE 4205 is an integrated power full-bridge DC-motor driver for a wide temperature range, as required in automotive applications for example. The circuit contains two power comparators that can be combined to a full-bridge circuit. For inductive loads there are integrated free-wheeling diodes to +VS and ground. The outputs are short-circuit proof up to 18 V supply voltage to ground and turn off when overtemperature occurs. This IC is especially suitable for headlight-beam adjustment in automobiles.
- Summary of Features:
- Max. driver current 1 A
- Integrated free-wheeling diodes
- Short-circuit proof to ground
- Inhibit
- ESD protected inputs
- Temperature range – 40°C≤Tj≤150°C
- Benefits:
- Wide supply voltage range allows usage for 12V and 24V applications

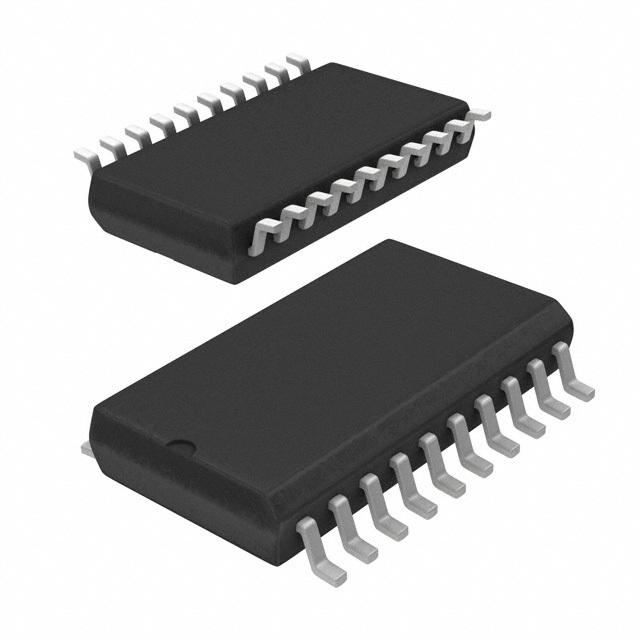

TLE4205G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | P-DSO-20 |
| Supply Voltage (DC) | 6.00V (min) |
| Number of Outputs | 2 Output |
| Output Current | 1 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage | 6V ~ 32V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
