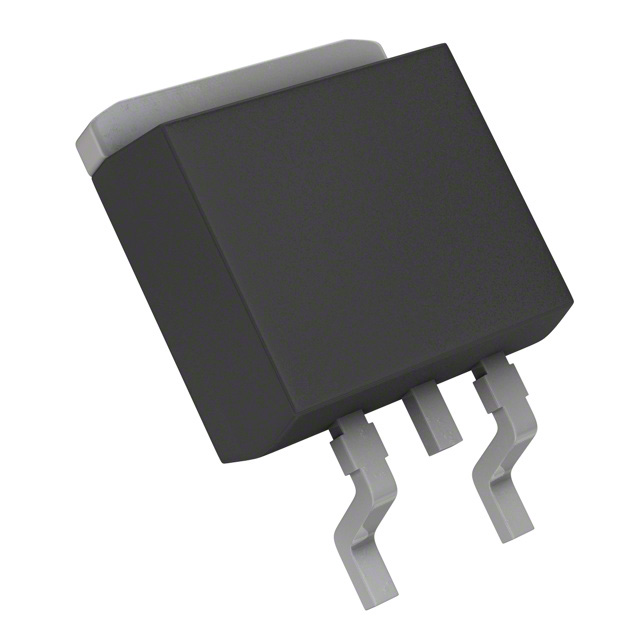

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TLE42744 is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA. An input voltage up to 40 V is regulated to VQ,nom = 5 V / 3.3 V with a precision of ±2%. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The TLE42744 can be also used in all other applications requiring a stabilized 5 V / 3.3 V voltage.
- Due to its very low quiescent current the TLE42744 is dedicated for use in applications permanently connected to VBAT.
- Features
- • Very Low Current Consumption
- • Output Voltages 5 V and 3.3 V ±2%
- • Output Current up to 400 mA
- • Very Low Dropout Voltage
- • Output Current Limitation
- • Reverse Polarity Protection
- • Overtemperature Shutdown
- • Wide Temperature Range From -40°C up to 150°C
- • Green Product (RoHS compliant)
- • AEC Qualified
TLE42744DV50 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 3 Pin |
| Case/Package | DPAK-252 |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 400 mA |
| Input Voltage (Min) | 5.5 V |
| Input Voltage | 40 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
