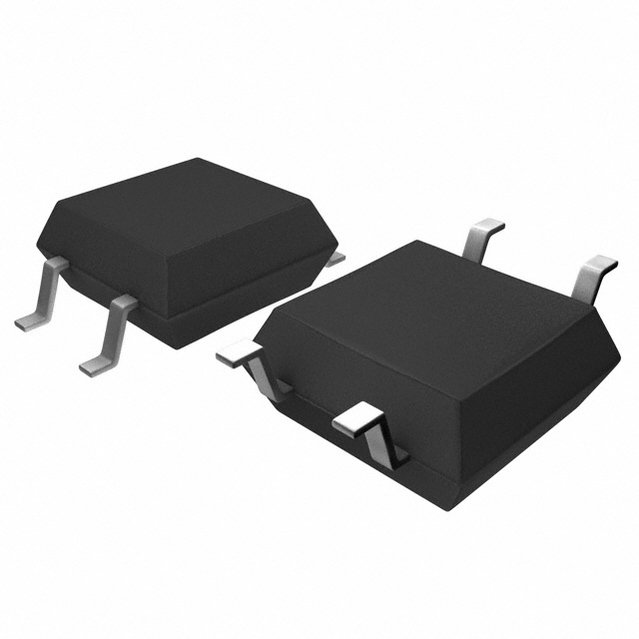

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PROGRAMMABLE CONTROLLERS
- AC adapters for PDAs/ on-board power supplies
- I/O interface boards
- TLP283 and TLP283-4 is a very small and thin coupler,suitable for surface mount assembly in applications such as on-board power supplies,programmable controllers. TLP283 and TLP283-4 consist of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
- Collector-Emitter Voltage : 100 V (MIN)
- Current Transfer Ratio : 100% (MIN)@IF=1mA
- 1 Pulse delay time(Note 1) : 100us(MAX)@IF=1mA,RL=10kΩ
- Isolation Voltage : 2500 Vrms (MIN)
- UL Recognized : UL1577 , File No. E67349
- Note 1 : 1 Pulse delay time = tON+tOFF
TLP283 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Input Voltage (DC) | 1.15 V |
| Output Voltage | ≤100 V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.15 V |
| Power Dissipation | 200 mW |
| Rise Time | 7.50 µs |
| Isolation Voltage | 2500 Vrms |
| Output Voltage (Max) | 100 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Forward Current (Max) | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Height | 1.9 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
