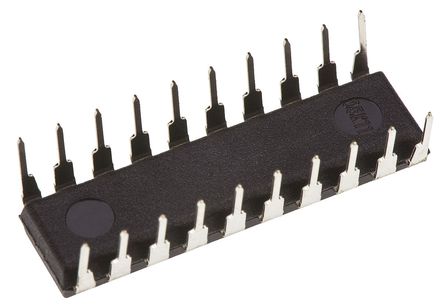

The TLS1233 is a 100-MHz wide-band video preamplifier system intended for mid-to-high-resolution RGB (red-green-blue) color monitors. Each video amplifier (R, G, and B) contains a gain set for adjusting maximum system gain (AV= 7.8 V/V). The TLS1233 provides digital level-operated contrast, brightness, and gain adjustment control. All the control inputs offer high input impedance and an operation range from 0 V to 4 V for easy interface to the serial digital buses. Provided in a 20-pin plastic dual-in-line package (DIP), the TLS1233 integrates most of the external components required to accommodate the video system.
The TLS1233 operates from a 12-V supply and contains an internal input bias voltage. Also, the TLS1233 contains the feedback resistor required between output and CLAMP(–) for dc level holding. The device is characterized for operation from 0°C to 70°C.
Wide Bandwidth...Typ 100 MHz at –3 dB
Three Channels
0 V to 4 V, Digital Level-Contrast Control
0 V to 4 V, Digital Level-Gain Adjust Control
20-Pin Plastic DIP for Small PCB Area Required
Fewer Peripheral Components Required Than for LM1203 Applications
Independent CLAMP(+) Adjustment to Each Channel
