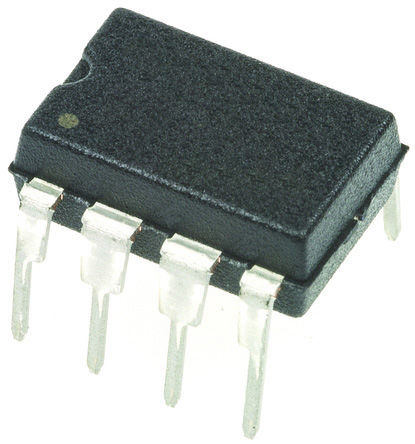

Image is for your reference only,please check specifications for details

TLV2371IP - TI
Manufacturer:
TI
ManyChip's Part#:
MC18291058
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV2371IP Operational Amplifier, Single, 1 Amplifier, 2.4MHz, 2V/µs, 2.7V to 16V, DIP, 8Pins
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLV237x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 µA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8 V supplies down to ±1.35 V) a variety of rechargeable cells.
Rail-To-Rail Input/Output
Wide Bandwidth...3 MHz
High Slew Rate. . . 2.4 V/µs
Supply Voltage Range. . . 2.7 V to 16 V
Supply Current. . . 550 µA/Channel
Low Power Shutdown Mode
IDD(SHDN)... 25 µA/Channel
Input Noise Voltage . . . 39 nV/√Hz
Input Bias Current...1 pA
Specified Temperature Range
−40°C to 125°C . . . Industrial Grade
Ultrasmall Packaging
5 or 6 Pin SOT-23 (TLV2370/1)
8 or 10 Pin MSOP (TLV2372/3)

Show

TLV2371IP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Output Current	8mA @5V
Supply Current	750 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1200 mW
Common Mode Rejection Ratio	55 dB
Input Offset Drift	2.00 µV/K
Bandwidth	2.4 MHz
Slew Rate	2.40 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	2 mV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Power Dissipation (Max)	1200 mW
Minimum CMRR Range	55 dB
Supply Voltage	2.7V ~ 16V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
