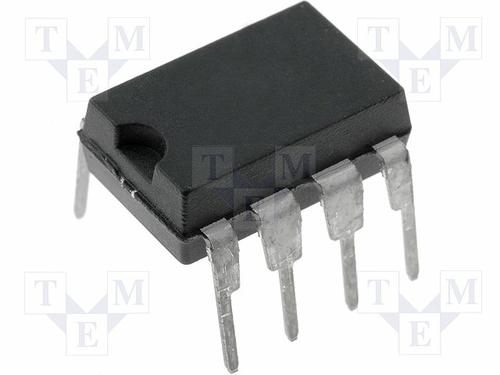

- TLV2462IP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11139131
-
Category:Operational Amplifier, OP Amp IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TLV2462IP Operational Amplifier, Dual, 2 Amplifier, 6.4MHz, 1.6V/µs, ± 1.35V to ± 3V, DIP, 8Pins
-
Stock Locations:
-
Availability:237 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.09
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for portable applications. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters.
- The operational amplifier has 6.4 MHz of bandwidth and 1.6 V/µs of slew rate with only 500 µA of supply current, providing good ac performance with low power consumption. Three members of the family offer a shutdown terminal, which places the amplifier in an ultralow supply current mode (IDD = 0.3 µA/ch). While in shutdown, the operational-amplifier output is placed in a high-impedance state. DC applications are also well served with an input noise voltage of 11 nV/Hz and input offset voltage of 100 µV.
- This family is available in the low-profile SOT23, MSOP, and TSSOP packages. The TLV2460 is the first rail-to-rail input/output operational amplifier with shutdown available in the 6-pin SOT23, making it perfect for high-density circuits. The family is specified over an expanded temperature range (TA = 40°C to 125°C) for use in industrial control and automotive systems, and over the military temperature range (TA = 55°C to 125°C) for use in military systems.
TLV2462IP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Operating Voltage | 2.7V ~ 6V |
| Output Current | 80mA @5V |
| Supply Current | 550 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 1200 mW |
| Common Mode Rejection Ratio | 71dB ~ 85dB |
| Input Offset Drift | 2.00 µV/K |
| Bandwidth | 6.4 MHz |
| Slew Rate | 1.60 V/μs |
| Gain Bandwidth Product | 6.4 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 500 µV |
| Input Bias Current | 1.3 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 6.4 MHz |
| Power Dissipation (Max) | 1200 mW |
| Minimum CMRR Range | 71 dB |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
