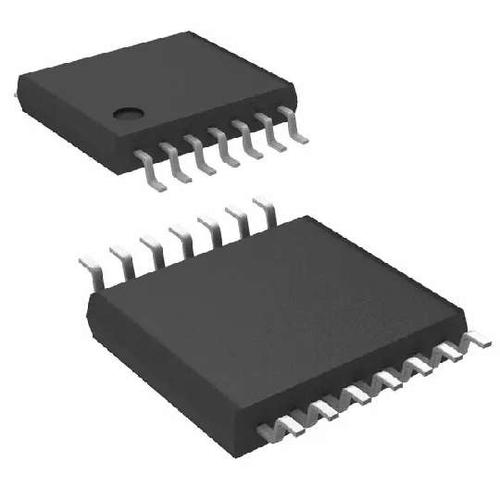

Image is for your reference only,please check specifications for details

TLV274CPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC9431240
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV274CPWR Operational Amplifier, Quad, 4 Amplifier, 3MHz, 2.4V/µs, ± 1.35V to ± 8V, TSSOP, 14Pins
Stock Locations:
Availability:
1,776 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.9

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Operating from 2.7 V to 16 V over the extended industrial temperature range from –40°C to +125°C, the TLV27x is a low power, wide bandwidth operational amplifier (opamp) with rail to rail output. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x provides 3-MHz bandwidth from only 550 µA.
Like the TLC27x, the TLV27x is fully specified for 5-V and ±5-V supplies. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies down to ±1.35 V).
The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
The 2.7-V operation makes it compatible with Li-Ion powered systems and the operating supply voltage range of many micropower microcontrollers available today including TIs MSP430.

Show

TLV274CPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Output Current	13 mA
Supply Current	625 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	374 mW
Common Mode Rejection Ratio	65 dB
Input Offset Drift	2.00 µV/K
Bandwidth	3 MHz
Slew Rate	2.10 V/μs
Gain Bandwidth Product	3 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	1 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	3 MHz
Power Dissipation (Max)	374 mW
Minimum CMRR Range	65 dB
Supply Voltage (Max)	16 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
