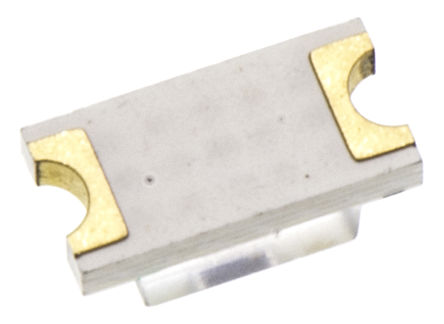

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PIN Photodiodes Chipled Package**
- The SFH 2701, from OSRAM Opto Semiconductors, is a high speed PIN photodiode. It comes in a compact Chipled package with the standard 3216 footprint. The SFH 2701 is a fast PIN photodiode. Suitable applications for the SFH 2701 include; optical disk drives, photointerrupters, industrial electronics and control/drive circuits.
SFH 2701 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-2 |
| Number of Positions | 2 Position |
| Wavelength | 820 nm |
| Viewing Angle | 120° |
| Peak Wavelength | 820 nm |
| Rise Time | 2 ns |
| Reverse Breakdown Voltage | 20 V |
| Fall Time | 2 ns |
| Fall Time (Max) | 2 ns |
| Fall Time (Max) | 2 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 3.35 mm |
| Size-Width | 1.65 mm |
| Size-Height | 1.25 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
