Description
- FEATURES
- • Mono 16-Bit Oversampling Sigma-Delta A/D Converter
- • Mono 16-Bit Oversampling Sigma-Delta D/A Converter
- • Support Maximum Master Clock of 100 MHz to Allow the DSP Output Clock to be Used as a Master Clock
- • Selectable FIR/IIR Filter With Bypassing Option
- • Programmable Sampling Rate up to:
- – Max 26 Ksps With On-Chip IIR/FIR Filter
- – Max 104 Ksps With IIR/FIR Bypassed
- • On-Chip FIR Produced 84-dB SNR for ADC and 92-dB SNR for DAC
- • Smart Time Division Multiplexed (SMARTDM™) Serial Port
- – Glueless 4-Wire Interface to DSP
- – Automatic Cascade Detection (ACD) Self-Generates Master/Slave Device Addresses
- – Programming Mode to Allow On-the-Fly Reconfiguration
- – Continuous Data Transfer Mode to Minimize Bit Clock Speed
- – Support Different Sampling Rate for Each Device
- – Turbo Mode to Maximize Bit Clock for Faster Data Transfer and Allow Multiple Serial Devices to Share the Same Bus
- – Allows up to 16 Devices to be Connected to a Single Serial Port
- • Host Port
- – 2-Wire Interface
- – Selectable I2C or S2C
- • Differential and Single-Ended Analog Input/Output
- • Built-In Analog Functions:
- – Analog and Digital Sidetone
- – Antialiasing Filter (AAF)
- – Programmable Input and Output Gain Control (PGA)
- – Microphone/Handset/Headset Amplifiers
- – AIC12K has an 8-Ω Speaker Driver
- – Power Management With Hardware/Software Power-Down Modes 30 µW
- • Separate Software Control for ADC and DAC Power Down
- • Fully Compatible With Common TMS320™ DSP Family and Microcontroller Power Supplies
- – 1.65 V - 1.95 V Digital Core Power
- – 1.1 V - 3.6 V Digital I/O
- – 2.7 V - 3.6 V Analog
- • Power Dissipation (PD)
- – 11.2 mW at 3.3 V in Standard Operation
- – 17.8 mW at 3.3 V With Headphone Drivers
- • Internal Reference Voltage (Vref)
- • 2s Complement Data Format
- • Test Modes Which Include Digital Loopback and Analog Loopback
- APPLICATIONS
- • Digital Still Cameras
- • Wireless Accessories
- • Hands-Free Car Kits
- • VOIP
- • Cable Modem

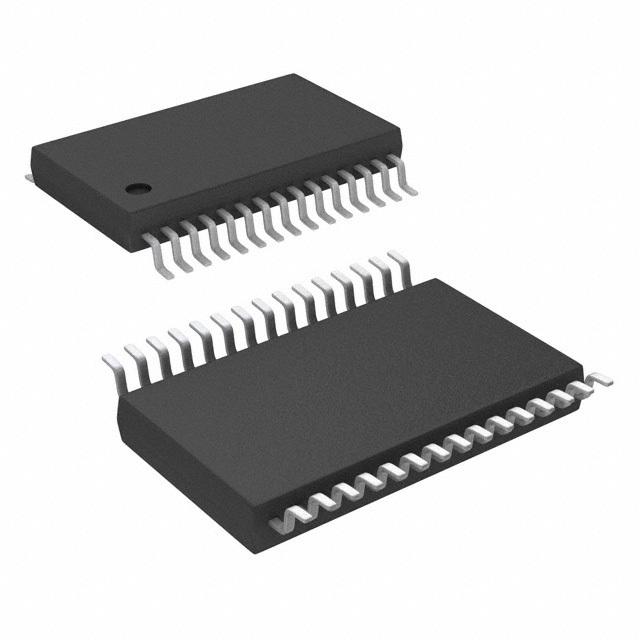

TLV320AIC14KIDBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 30 Pin |
| Case/Package | TSSOP-30 |
| Number of Channels | 1 Channel |
| Number of Positions | 30 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 17.8 mW |
| Sample Rate | 104 KSPS |
| Power Consumption | 11.2 mW |
| Output Power | 11.2 mW |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 17.8 mW |
| Number of Input Channels | 4 Channel |
| Number of Output Channels | 4 Channel |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 3.6V, 1.95V |
| Supply Voltage (Min) | 2.7V, 1.65V |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Weight | 0.003439 oz |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
