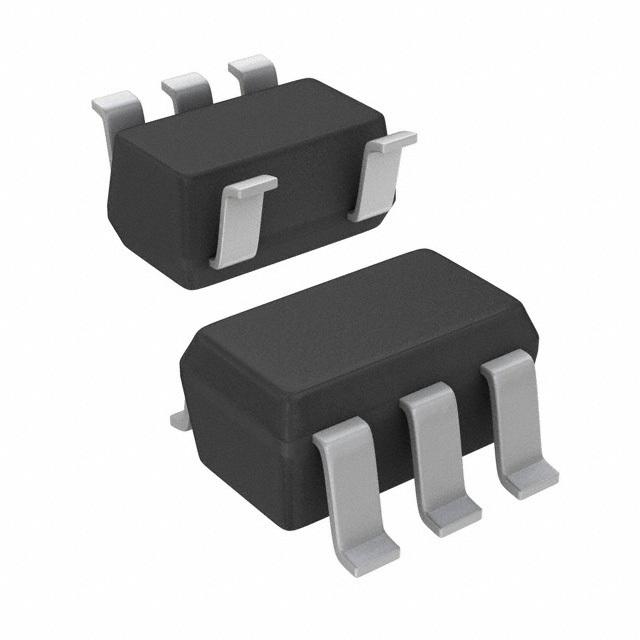

- TLV62565DBVR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC481519
-
Category:DC to DC Converter
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.2V 1.5A 5Pin SOT-23 T/R
-
Stock Locations:
-
Availability:1,651 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.36
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV62565/6 devices are synchronous step-down converters optimized for small solution size and high efficiency. The devices integrate switches capable of delivering an output current up to 1.5 A.
- The devices are based on an adaptive on time with valley current mode control scheme. Typical operating frequency is 1.5 MHz at medium to heavy loads. The devices are optimized to achieve very low output voltage ripple even with small external components and feature an excellent load transient response.
- During light load, the TLV62565/6 automatically enter into Power Save Mode at the lowest quiescent current (50 µA typ) to maintain high efficiency over the entire load current range. In shutdown, the current consumption is reduced to less than 1 µA.
- The TLV62565/6 provide an adjustable output voltage via an external resistor divider. The output voltage start-up ramp is controlled by an internal soft start, typically 250 µs. Power sequencing is possible by configuring the Enable (TLV62565) and Power Good (TLV62566) pins. Other features like over current protection and over temperature protection are built-in. The TLV62565/6 devices are available in a SOT-23 5-pin package.
TLV62565DBVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5.2V |
| Output Current | 1.5 A |
| Quiescent Current | 50.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1.5 MHz |
| Topology | Buck |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 5.23 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
